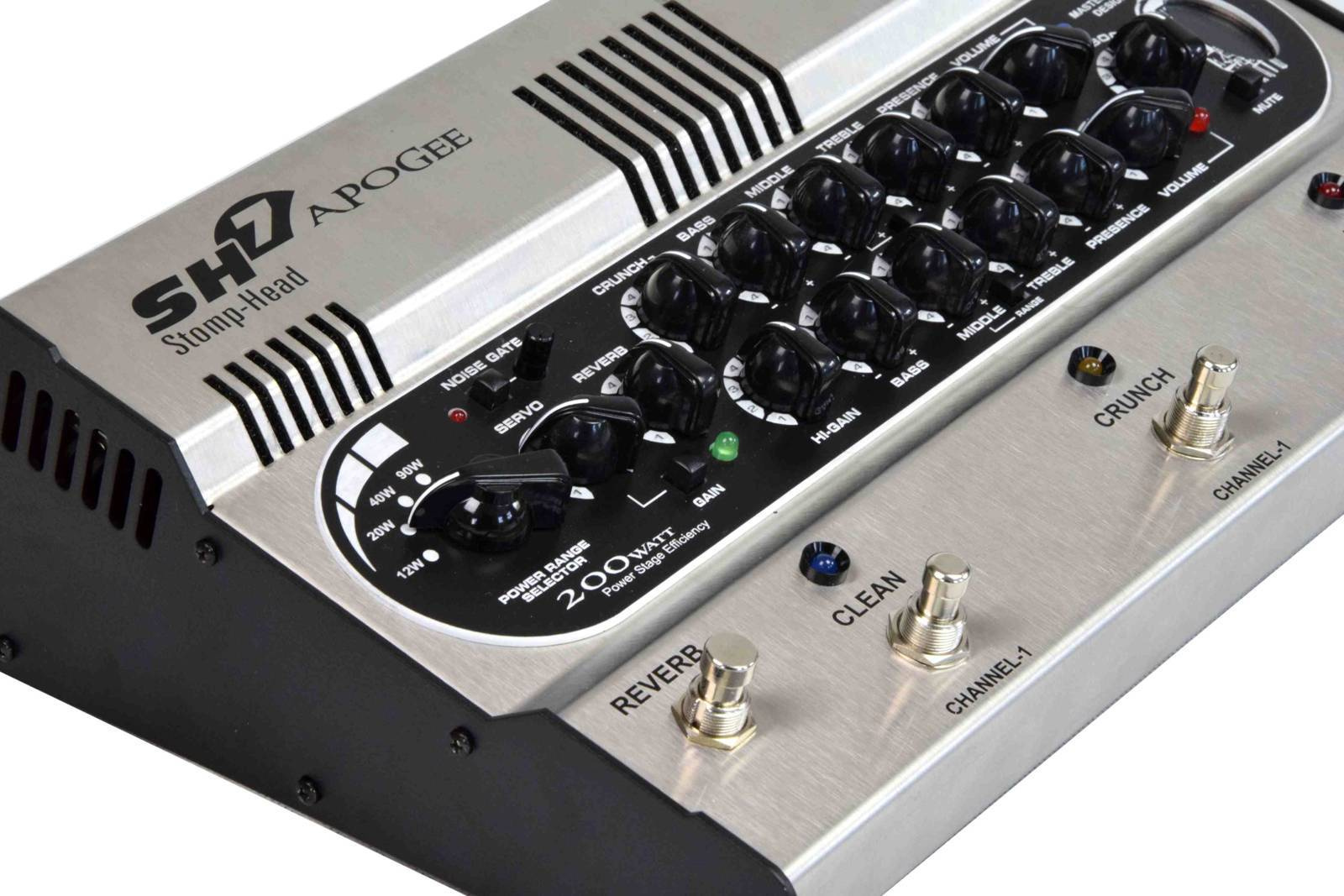

Stomp-Head 7.Apogee Tube Guitar Amplifier (12AX7 tube)
- Small, lightweight analog guitar amplifier with 4 power levels (90W, 40W, 20W, 12W). Stomp-head is the answer to the dilemma of combo or standard head. Amplifier, preamp, speaker simulator and foot controller in one.
- 4 power levels to choose from 90W, 40W, 20W, 12W
- small and lightweight construction
- use as a guitar preamp
- use as a classic amplifier with loudspeaker cabinet
- can be installed in a pedalboard
- 12AX7 tubes
- 5 footswitches
Stomphead is a fully analog amplifier of low weight and dimensions. It is designed to be mounted in the pedalboard together with the whole set of effects.
SH can be used also without connecting the speaker cabinet as the guitar preamp.
The amp can be used also in the traditional way as the head.
In the Stomp-Head 7 Apogee version, there are 2 channels available, CLEAN+CRUNCH and LEAD
The amplifier has a line output with simulation of a loudspeaker cabinet, which makes it possible to connect it to the input of a mixer or a power amp with a wide-band loudspeaker cabinet, obtaining the sound similar to a guitar cabinet on Celestion Vintage-30 speakers. A serial effects loop is also available.
Stomp-Head 7 as a preamp.
If you want to record sound or use the amplifier as a preamp without a speaker cabinet, there is a special tool on board for this purpose - an advanced speaker cabinet simulator (IR-Cab simulation). You have a choice of faithful simulations of two types of speakers: Celestion Vintage-30 and Celestion Creamback, You can also choose two types of small and large-sized speakers. You also have a simulation of the microphone position introducing an additional possibility of equalizing the tone on the line output. Thanks to this solution you can approach the sound conditions of the classic set of speakers with a microphone by transmitting the signal from the line output without connecting a speaker cabinet. All this is done in an analog, very simple and intuitive way, without the need for additional equipment. The line output has two paths with and without simulation. This solution makes it possible to connect also an external speaker simulator. So you can use the built-in simulation or the external one or both at the same time.
Power stage efficiency: 200Watt
Power output selector: 90W, 40W, 20W, 12W
Speakers impedance auto-detection: 4,8 and 16ohm
2 channels: CLEAN+CRUNCH and LEAD
5 footswitches: CLEAN, CRUNCH, DRIVE, REVERB, BOOST
CHANNEL controls (CLEAN & LEAD):
GAIN, BASS, MIDDLE, MID-RANGE switch, TREBLE, PRESENCE, VOLUME
SERVO - analog enhancer level with SERVO GAIN switch
BOOST - access to set two different volume levels
input GAIN boost (switch +6dB)
RESONANCE - switch increasing the sound in the resonance range of the loudspeaker
Serial EFFECT LOOP
LINE OUTPUT with Speaker Simulation. Allows send linear signal with simulation (PIN) or without simulation (RING) or both simultaneously
EXTERNAL CONTROLLER INPUT for channel selector and BOOST
Voltage selector 230V/50Hz or 115V/60Hz
Taurus products are designed and hand-made in Poland. Adam Kozakiewicz, the founder of Taurus Amplification, musician, sound engineer, and electronics engineer, has been providing the market with the best and fully professional music equipment for 35 years. Manual processing and control, guarantee the best quality and full satisfaction.
